Silver Conductive Paint (Needed to Electroplate Plastics)

£383.91
(Inc. VAT)
£319.92
(Ex. VAT)
SKU:
SS39
UPC:
5060412651288
Weight:
2.00 KGS

Out of stock

Product Overview

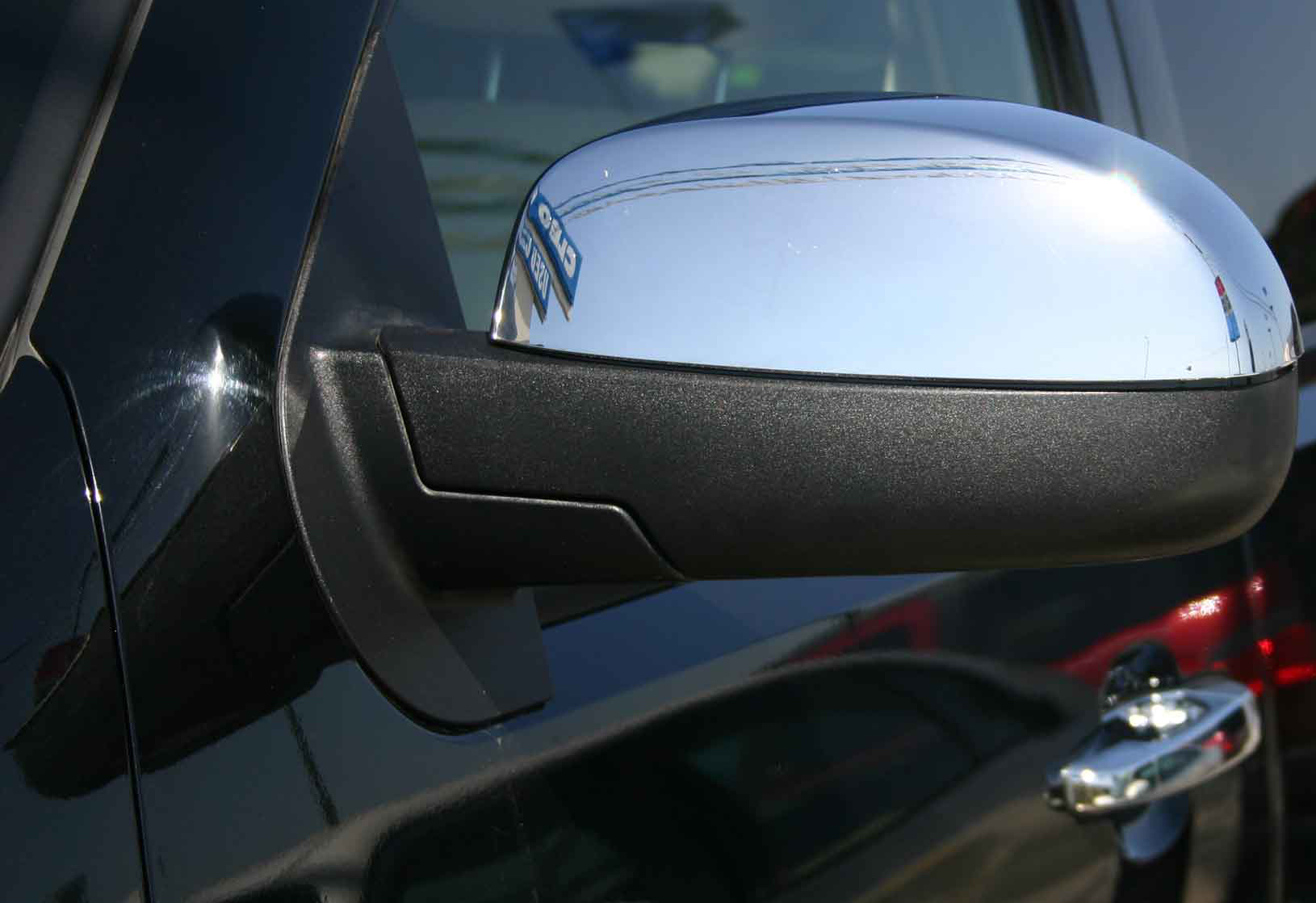

plastic-chrome.jpgSILVER CONDUCTIVE PAINT, Needed to Plate Non Metal Parts

NOW, you can plate all plastics and non-conductives’ easily!

Simply spray on Silvaspray™, allow to dry and plate., Directly accepts Bright Acid Copper, Copy Chrome, Nickel.

Pure Silver, Highly Conductive, no ‘missed spots’ of plating.  Incredible bond strength, bonds to all plastics and materials like dried flowers, baby shoes, etc.  Finished plated surface can be lightly buffed.  No delaminating from surface.  Fast drying, ready to plate in 30 minutes.  Beats ALL other conductive paints – by a mile!  Micro fine surface, gives incredible detail on intricate mouldings.  No need to pre-wire the parts.  Simply spray, allow to dry, and then attach an alligator clip. This product can be painted on with a very fine paint brush.

Comes in a 8oz can that covers approx 10 to 15 sq ft

More Technical Information:  Silvaspray™ is a new silver conductive coating for use on plastic substrates. It is unique in that it is formulated in very mild solvents that can tolerate higher built in stresses which can be found in moulded parts, and provides unequalled shielding at less than 0.5 mil (12.5 microns) dry film thickness. The dried conductive film is extremely hard, tough and durable. Contains no methyl ethyl ketone (MEK) or other strong solvents, which can attack solvent sensitive substrates, such as polycarbonate and polycarbonate blends.

Silvaspray™ is supplied as a concentrate, and it is designed with a fast drying solvent blend, which is desirable in high volume production.  Outstanding Characteristics:  Compatible with sensitive plastics because of mild solvents.  Effective shielding at less than 0.5 mil (12.5 microns) dry film. Contains no ketones, such as MEK, or other harsh solvents.100% Silver as the conductive medium.  Unmatched conductivity superior to any other coating product.  Cost saving because of superior conductivity performance at thin films. Excellent film cohesion.  “Zero Tolerance” for loose particles in the film. Passes U.L. requirements.  Excellent adhesion to most plastic substrates.  Excellent abrasion resistance.  Supplied as a viscous liquid for reduced settling.  Minimal overspray and dusting during application.  No rub off due to handling.  Fast drying.

Although Silvaspray is formulated in mild solvents, the user must test the compatibility on the actual moulded parts to determine its suitability for any specific application.

The following application parameters should be followed for optimum properties:  Material should be stirred thoroughly before use.  Material should be incorporated into a re-circulating system. Pressure in the system should be adjusted to produce sufficient flow rates to ensure suspension of the metal.  The gun should be set as follows:  Completely shut off needle to the gun.  Slowly open needle to achieve a minimum wet film.  Adjust fan for part.  Readjust needle setting to ensure minimum wet coat.  By following the above procedures, a number of benefits will be achieved. The optimum minimum film thickness will result in minimum cost per part. The above techniques will produce a very smooth and bright appearance. Maximum conductivity will also be achieved. Silvaspray™ dries rapidly.

Keep container closed. If skins develop, do not attempt to dissolve – strain through a coarse filter. Clean equipment after each use. Ethyl alcohol can be used to clean equipment. If strong solvents are used, flush the system with ethyl alcohol before use.
